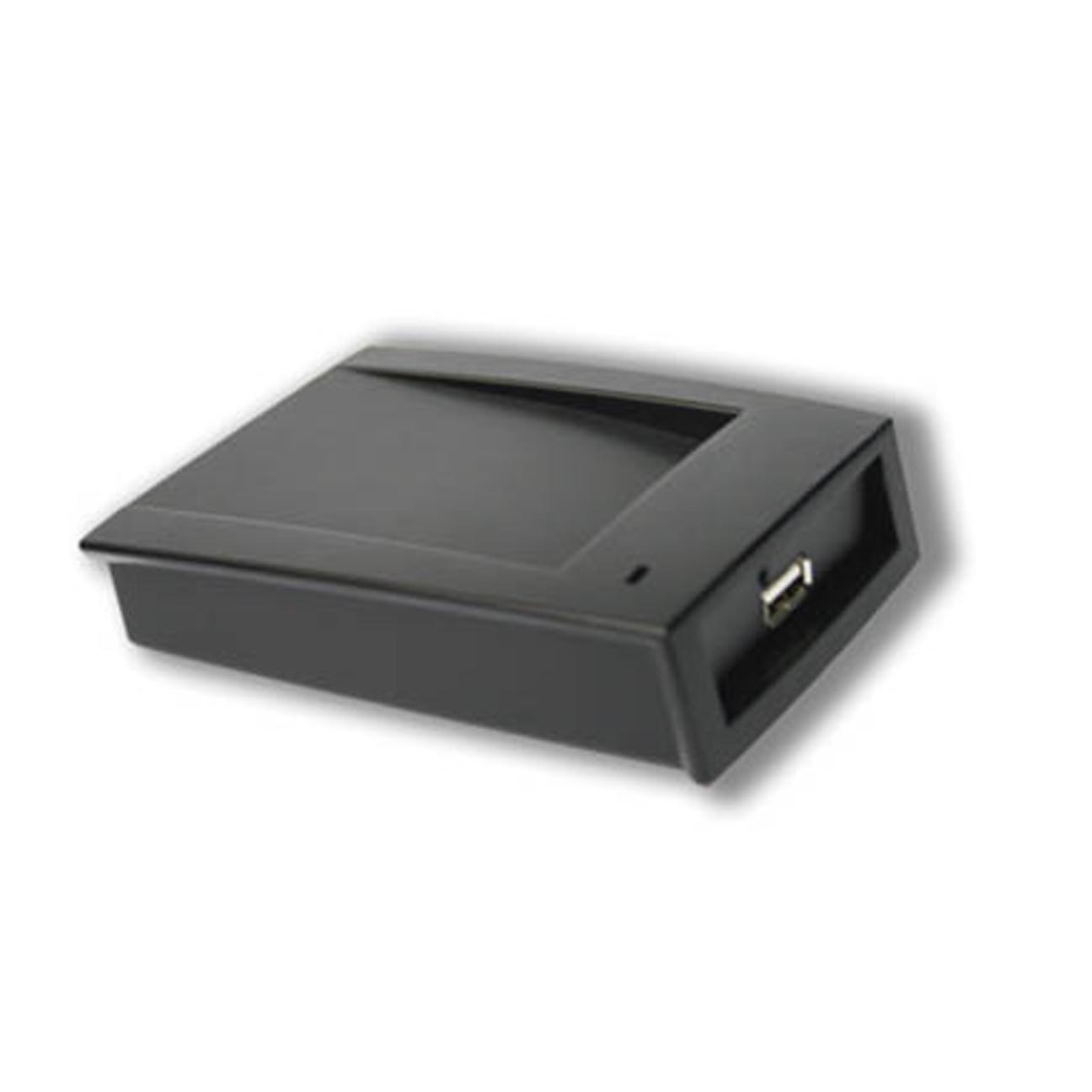

Product Name:ID card readerProduct Model:QS-ID01

Product Description

QS-ID series are contact-less ID card readers. It is used in internet bar, KTV order songs, order dishes etc. To read and transfer the ID card's data. It has the coding ID card's data and transmitting function, For different use, it can translate the ID card's data to the digital information which can be received by the mainframe, output by stimulation keyboard or RS-232 or USB serial port.

Feature:

1, No need outside power, it comes from the host computer

2, The shining pipe and buzzer to show the identification success or failure

3, The stimulation keyboard output interface can match IBM PC/XT/AT and their compatible machine. The stimulation keyboard be set between the keyboard and computer, it's function like a real keyboard, and there is no effects to the real keyboard using.

4, The RS-232 output, there is transfer cable to get the power from the keyboard interface. No need outside power, very convenient.

5, Good looking

Technical specification:

1, it can reading the ID card standard: 123KHz EM4100 or its compatible 64bit Manchester code

2, reading distance: >=5cm

3, Power voltage: DC 5V(5% tolerance)

4, Power current: <=65mA

5, Working environment: Temperature 0C~45C, humidity: 10%~90%RH
