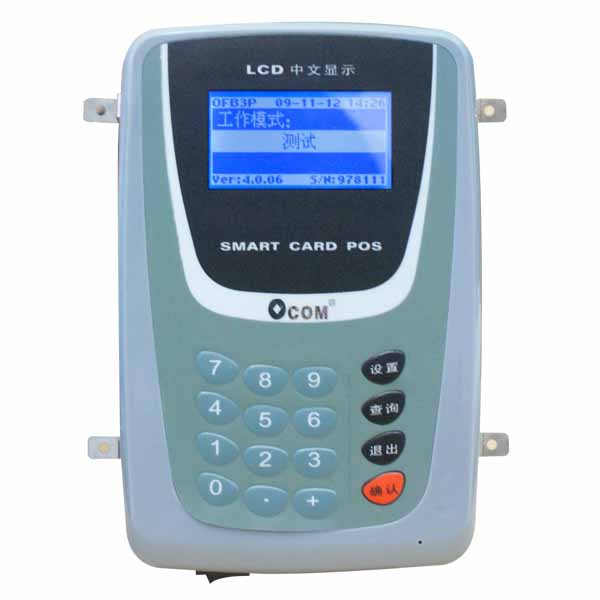

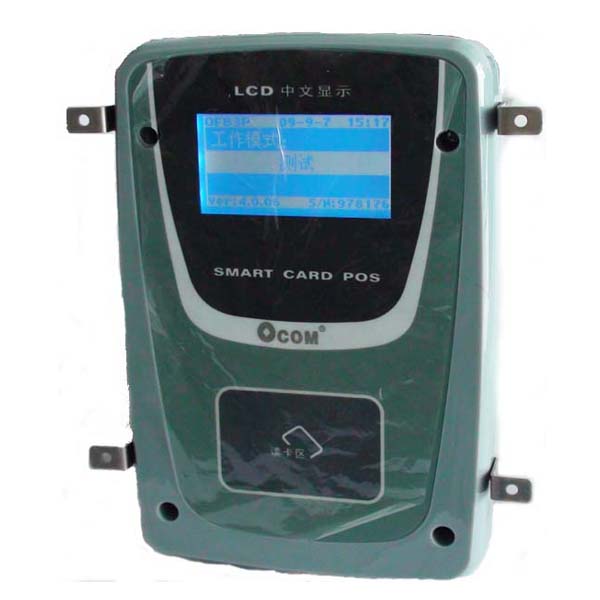

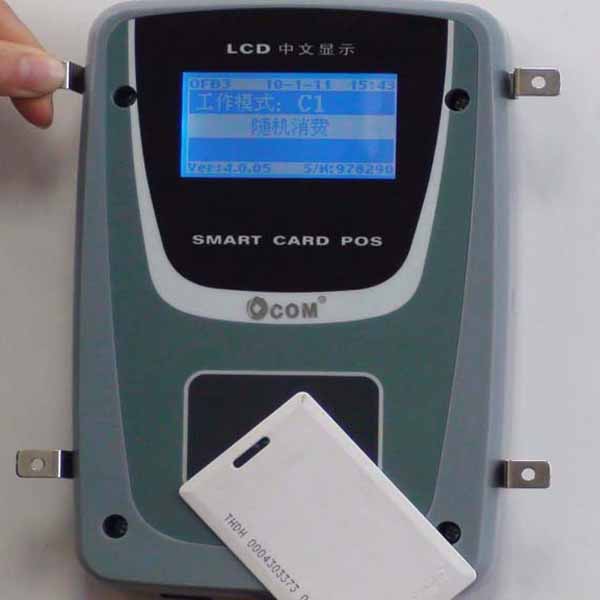

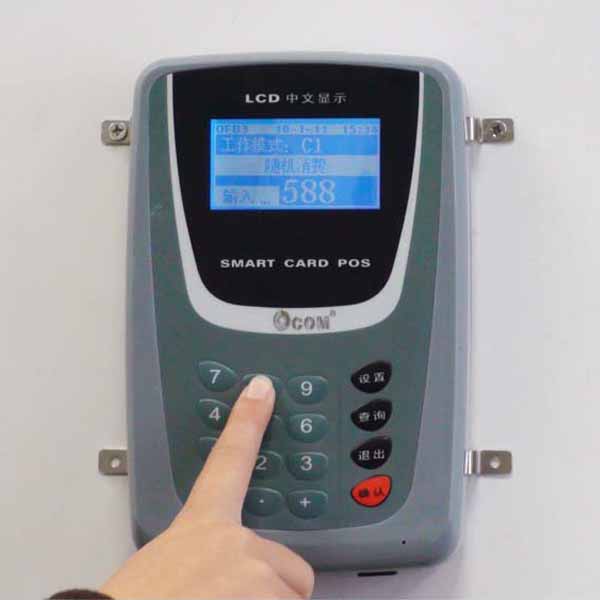

Product Name:Canteen consumption machineProduct Model:OFB3-2



Technical Parameters

【Appearance】  Wall-mounted
【Pay Mode】 Mifare/IC mode
【Working Mode】  Offline
【Capacity】  8,000 records, 200,000 blacklists
【Communication Protocol】  RS485
【Communication Port】  Wire or RJ45 plug (optional)
【Card Supported】  Mifare/IC card
【Power Supply】  DC9V～12V, 500mA
【Average Power Consumption】  < 3W
【Temperature & Humidity】  -10°C ～ 55°C, 0%-90%
【Dimension】  210mm×140mm×42 mm
【Response Time】  < 1 second
【Response Distance】  > 3cm
【LCD】 Hi-definition LCD screen

Function Parameters


◆ Smart-card Food Service can issue card, recharge, consume, subsidize, return card, count, enquire, register the loss, etc. and provide all kinds of report sheets with user-friendly operation and perfect functions
◆ Achieve multiple pay modes such as Normal, Fixed Deduction, Number Key to Set Value, Transaction Times; optional setting of maximum spending amount, limited transaction times or limited amount according to the need
◆ Built-in E-wallet; support offline mode, consumption by amount or times
◆ Double encryption for Mifare/IC card to ensure secure and reliable consumption
◆ Hi-definition LCD screen; employee name and card's expiry date can be displayed
◆ Back-up battery so that it can still work properly when power failure occurs
◆ One-card system combined charging, attendance and access control; applying to restaurant, club, parking lot, school, factory, hotel and so on.

Application Mode



C1: Normal
C2: Fixed Deduction
C3: Number Key to Set Value
C4: Transaction Times
C5: Fixed-amount Recharge (Recharge machine)
C6: Fixed-time Recharge (Recharge machine)
C7: Amount Subsidy (Subsidy machine)
C8: Times Subsidy (Subsidy machine)

Software Functions


◆ Different cards with different consumption rights
◆ Optional setting of limited consumption per meal or per day
◆ Optional setting of cards authorized for consumption & maximum spending amount
◆ Cashier management
◆ Recharge by online mode or recharge machine
◆ Cancelling previous incorrect operation
◆ Register the loss of card, re-issue card, change card, return card and cancel card
◆ Record enquiry of recharge, withdrawal, loss-register and card-change
◆ Check consumption details
◆ Enquiry for balance, daily report sheet, monthly report sheet and personal report sheet.
