Product Name:Single-sided Card PrinterProduct Model:CS-310

Model Name

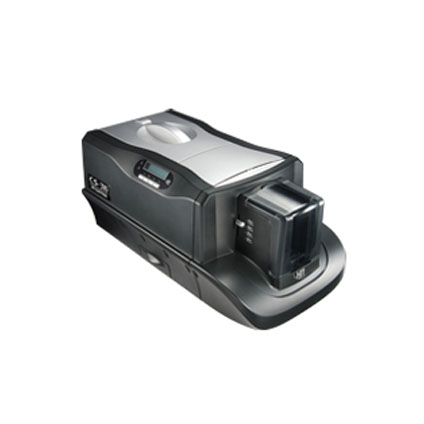

CS-310 Single-sided Card Printer

Printing Method

Color Dye Sublimation / Monochrome Thermal Transfer

Resolution

300 X 300 dpi

Display

LCM control panel

Memory

32MB ; 1MB Flash

Printing Speed

Speed Mode: 24 sec per YMCKO single side
Premium photo mode: 32 sec per YMCKO printing

Accepted Card Specification

Size: CR-80 86mm(L) x 54mm(W) / 3.375"(L) x 2.125"(W)
Thickness : 0.3 mm* to 1.0 mm / 10 mil* to 40 mil
* 0.3mm (10mil) only supports single side printing

Card Input Capacity

100 Cards (0.76 mm / 30 mil thickness)

Card Out Capacity

100 Cards (0.76 mm / 30 mil thickness)

Software Driver

Windows 2000 / XP, Mac OS 10.2 and above

Communication Interface

USB 1.1 / USB 2.0 full speed

System Request

IBM-PC or compatible, Windows 2000/XP, Pentium class 133MHz Computer with 128MB of RAM or higher, 100 MB free hard disk space or higher

Dimensions (WxLxH)

275 mm x 508 mm x 251 mm / 10.83" x 20" x 9.9"

Weight

9.1 kg / 20 ibs

Power Supply

100 ~ 240 VAC; 50Hz ~ 60Hz

Operating Condition

10° ~ 32° C / 59° to 89.6°F; 20 ~ 75% non-condensing

Ribbon Option

YMCKO (200 prints)
Resin K (1,000 prints)
KO (500 prints)

Embedded Encoding Modules (SDK upon request)

Contact Smart Card Encoding Module

Optional Encoding Modules (SDK upon request)

Contactless Smart Card Encoding Module (Mifare ISO 14443 type A available)
Magnetic stripe card encoder, Dual high- and low-coercivity, Track 1, 2, and 3.*

*The magnetic stripe module must be factory installed, please specify when ordering.

Accessories

Clean Kit (Clean cards & swaps)
Clean Module (Clean roller)





Item

Package

Overview

YMCKO 200 Images Ribbon

Pack

YMCKO 200 prints ribbon

Carton

16 packs (16 ribbons=3,200 images)

Resin K 1000 Images Ribbon

Pack

Resin K 1000 prints ribbon

Carton

16 packs (16 ribbons=16,000 images)

KO 500 Images Ribbon

Pack

KO 500 prints ribbon

Carton

16 packs (16 ribbons=8,000 images)
