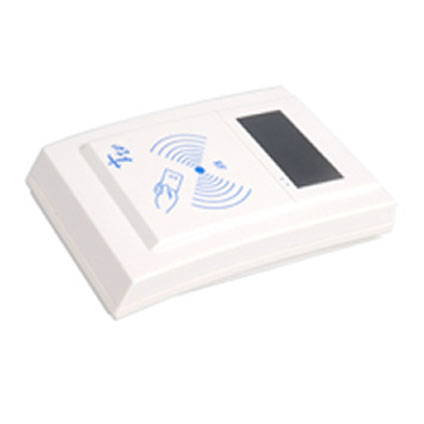

Product Name:Non-Contact IC Card Reader&WriterProduct Model:RF-35LT

Product Description
RF-35LT Series RF reader is a standard-type non-contact IC card reader equipment, it adopted RS232/USB interface and PC connectivity. In support of both the stand-alone operation, but also the use of networking.
Features:
-- Can read and write with ISO14443TYPEA / B standard of non-contact cards / MIFARE Series cards / DESFIRE/ICODE2/AT020
Reader card and RF data transmission between the use of encryption algorithm, cards and two-way test equipment, communications automatic error detection
Anti-collision mechanism that can handle multiple RF Card
-- With a complete card reader
Through 485 can achieve multi-machine communication
-- With buzzers and eight LED Display (LCD or Chinese)

RF-35 Series RF reader technical specifications
Model RF-35
Read distance: (50-100)mm
Support for card-reader can meet ISO14443TYPEA / B standard of non-contact cards / MIFARE Series cards / DESFIRE/ICODE2/AT020
Computer interface RS232/485/USB
Communications Rate 9600bps-115200bps
Casing Antenna plastic shell casings, the control unit to read and write iron plastic shell casing
Frequency 13.56MHz
Voltage DC9V+-5%
Card and reader communication speed 106Kbit
Temperature 0-50
Relative humidity 30%-95%
With dimensions (length x width x height) (mm) control unit: 152*115*53
Antenna: 211*162*19 143*140*28(LED)
156*112*23(Chinese LCD)
Weight about 600 grams (not including the antenna) about 200 grams
