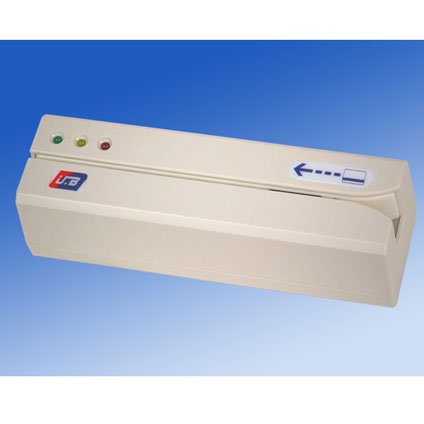

Product Name:Magnetic Card Reader/WriterProduct Model:YLE 300

YLE-300 series magnetic stripe card reader machine is equipped with heavy metal base and high quality ABS which plastic shell , structure solid,beautiful looking,use imported dedicated IC, compared to similar products with the reader a wide speed range,good to pull,strong ability of anti-electromagnetic interference characteristics, especially for the needs of domestic customers.

YLE-300 series magnetic stripe card reader machine used manually swipe-card,can read ISO standard magnetic coding massege in track 1,track 2 and track 3.magnetic coding rule is accord for 2 kinds of styles of ISO or IBM.Easy to operate the programme,and one time of swipe to fish read and write,the card containing reading and writing of double checking function.

YLE-300 series magnetic stripe card reader machine can contact with any of RS-232 serial port(is support USB nozzle at present)pomputer or terminal, using in read and write of magnetic card or magnetic bankbook masseges.The product is stable and reliable performance,and good compatibility,(Capable of reading and writing machine is compatible in homeland and the major manufacturers magnetic command set as well),is the ideal peripherals of computer system.It can be widely used in finance, telecommunications, transportation, customs and other fields, especially in the banking system, credit cards, magnetic cards and passbooks of reading and writing.And can be provide the two time of software package.



Product characteristic

1. Read-write in state sound, light double instructions.

2. To support high-low draw cards.

3. Long life of the magnetic head.

4. Swipe-card lightweight to reduce the magnetic strip of the scratch.

5. A variety of recording formats.

6. Software can be upgraded according to customer requirements in time.

7. Unique anti-jamming measures, suitable for a variety of environments. 8. Modeling smooth, beautiful appearance.



Product technology and indicators

Speed of pulling card：10～120cm/s

Magnetic Card Standard: ISO 7811～7815

Recording density: 1st track: 210BPI

               2nd track: 75BPI; 210BPI

               3rd track: 210BPI

Recording character: 1st track: 76 characters

                  2nd track: 37 characters (low density 75BPI )

                                   104 characters( high density 210BPI)

                  3rd track: 104 characters

output interface：RS-232

 Life of magnetic head：more than 600,000 times

 Power supply：DC 5V±5% 180mA
· Work circumstance ： work temperature 0℃～+45℃
   　　　　　　         work humidity 10%～90%R



Dimension

 Dimension: 230mm*60mm*67mm

Weight:0.5kg
