Detailed Product Description

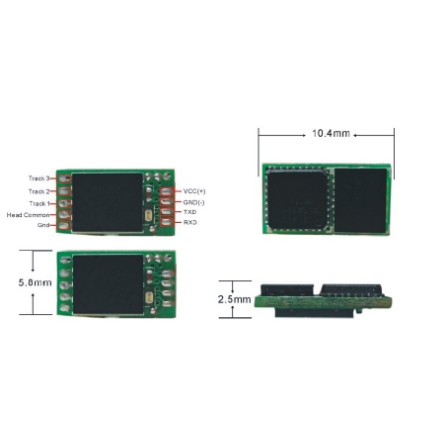

smallest magnetic data collector device with interrupted swiping support interrupted function PCB size: 10.4*5.8*2.5mm
OEM Card Readers: Data Collection Intermittent Data Collection Interrupted function Battery rechargeable Mini size: 10.4*5.8*2.5mm
Introduction MSR009 is Portable Data Collector. It's a portable magnetic swipe reader, which is specially designed for magnetic stripe data collection anytime and anywhere without computer. Large memory can collect 32000 data. Built-in Time clock indicates every transaction date and time. Data is read from the card and kept into the memory then downloaded to the computer. Features - Ultra low power consumption - Reads interrupted swipes in both directions - Reads all magnetic cards - Low voltage operation -Swipe Direction - bidirectional - Data downloadable to the computer via USB - Time stamp shows date and time with every transaction - Hardware imbedded password protection - 3-track version can collect all three tracks data - Fully encrypted - Stores 32000 card scans - All swipes are timestamped - Data retained even if power is removed - No programming required, easy to use as 1- 2- 3 Applications - Any movable data collection (Trade shows, Racing events) - Point of sales - Law enforcement (DMV card) - Attendance (Student ID, Membership card) - Conference Attendance - Classroom Attendance - Meeting Attendance - Door Locking Systems ISO Standard Track 1 210 bpi, 79 Alphanumeric Characters Track 2 75 bpi, 40 Numeric characters Track 3 210 bpi, 107 Numeric characters
Minimum Card Read With Interrupted Function
