Magnetic card reader

Home - Products > Magnetic card reader

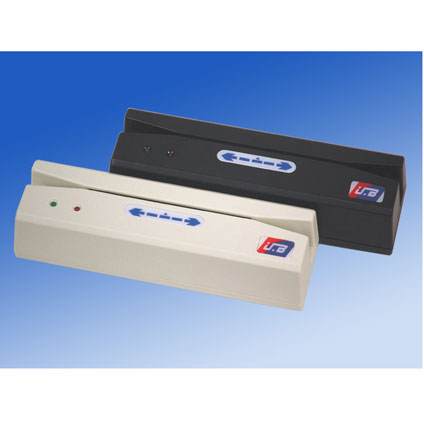

Product Name:Magnetic Card ReaderProduct Model:YLE 400

Product Description

General Feature:
The leading manufacturer of Magnetic Card Reader in China with professional export experience. The reader comprise card read and stripe decoding, can read ISO Track1, 2, 3 three tracks, and glow, infrared light, as well as all professional bank's book stripe, it can connect with many terminal and PC. Serial / USB / PS2 interface selectable.

Application
POS terminal ID verification Banking system Time and attendance terminals etc.

Specification
1)Read ISO 7811～7815  Track 1, 2, and 3
2)Build-in driver.
3)Programmable. Easy setup for any application

4)Speed of pulling card:10～120cm/s
5)Life of magnetic head:more than 600,000 times

6)Power supply：DC 5V±5%  ≤35mA （bar code series≤80MA）

7)Work circumstance: work temperature 0℃～+45℃
   　　　　　　         work humidity 10%～90%R

8)Bi-directional read
9)Decoding Method: F2F (FM)
10)Black / White design

11)USB/ RS232/PS2/TTL output selectable (5ft (150cm) cable length, approximate)
12)Magnetic head use platinum and manganese alloy material, head life is more than 1, 000, 000 card swipes. Read all high and low Co magnetic strip.
13)Reading Density: 210BPI, 75BPI, 210BPI
14)Character: Track 1: 79 characters (7-bit); Track 2: 40 characters (5-bit); Track 3: 107 characters (5-bit).
15)Dimension 172mm*52mm*41mm
16)Vibration: Amplitude 2mm, 2G, 10-55Hz/min in x, y, z direction.
17)Shock resistance: Up to 30G, 11 msec.
18)Weight: Approx 0.3kg.
