Product Name:Mifare one cardProduct Model:S50

Detailed Product Description



MF1 IC S50 The ever-popular MF1 1K chip card from Philips, also known as MF1 Classic.
accordingto the ISO 14443A standard. contains 1Kbytes of read/write memory that canbe used for multiple applications.

1. Electric feature: Contactless transmission of data and supply energy (no battery needed) Operating distance:Up to 100mm (depending on antenna geometry) Operating frequency:13.56 MHz Fast data transfer:106 kbit/s High data integrity:16 Bit CRC,parity,bit coding,bit counting True anticollision Typical ticketing transaction:< 100 ms (including backup management)

2.EEPROM 1 Kbyte,organized in 16 sectors with 4 blocks of 16 bytes each (one block consists
of 16 byte) User definable access conditions for each memory block Data retention of 10 years Write endurance 100.000 cycles

3.Security Mutual three pass authentication (ISO/IEC DIS9798-2) Data encryption on RF-channel with replay attack protection Individual sert of two keys per sector (per application) to support multi-application
with key hierarchy Unique serial number for each device Transport key protects access to EEPROM on chip delivery

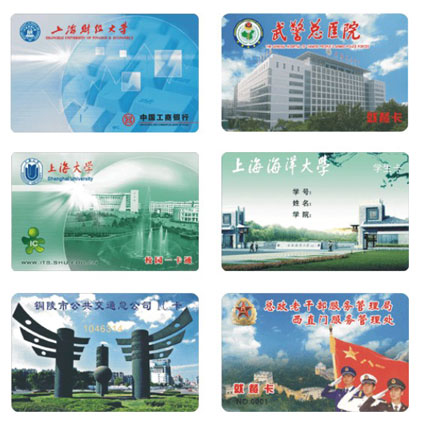

 4.Physical Feture:

A)Card material: PVC, polyester, ABS, PET, PETG, combination

B) Card size: CR80 (54 x 85. 6mm), CR50, custom size

C) Options: hole punch, signature panel, loco or hico mag. strip, foil, hologram
image, magnetic strip

 D) Color: white glossy, white matte, custom color finish, custom photo overlay

 E) Chip available:original MF1 S50, S70 or compatible chinese chip

F) Applications: certificate ID card, access control, transportation, LNG, library,
parking

 Shipping Weight: 0.006KG/PCS
