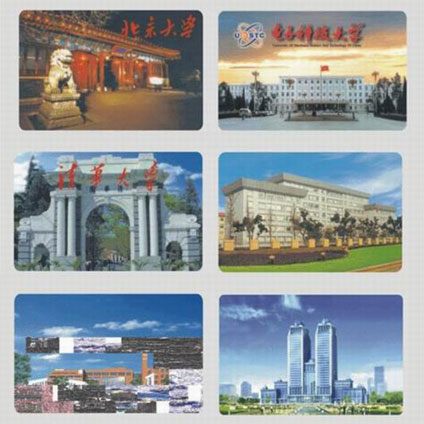

Product Name:Mifare 4K IC Card Product Model:S70

Detailed Product Description



 1. MIFARE RF Interface (ISO/IEC 14443 A)
Contactless transmission of data and supply energy (no battery needed)
Operating distance: Up to 100mm (depending on antenna geometry)
Operating frequency: 13.56 MHz
Data transfer: 106 kbit/s
Data integrity: 16 Bit CRC, parity, bit coding, bit counting
Anticollision
Typical ticketing transaction: < 100 ms (including backup management)



2. EEPROM
4 Kbyte, organized in 32 sectors with 4 blocks of 8 sectors with 16 blocks (one block consists of 16 byte)
User definable access conditions for each memory block
Data retention of 10 years.
Write endurance 100.000 cycles



3. Security
Mutual three pass authentication (ISO/IEC DIS 9798-2)
Individual set of two keys per sector (per application) to support multi-application with
key hierarchy
Unique serial number for each device



Physical Features

Dimension: ISO Standard Card Size

Thickness: 0.84mm

Material: PVC, PET-G, PVC Composite

Options: Offset & Silk Screen Pre-printing, Card & Chip Personalization

Key applications
Public transportation
Access control
Event ticketing
Gaming & identity
